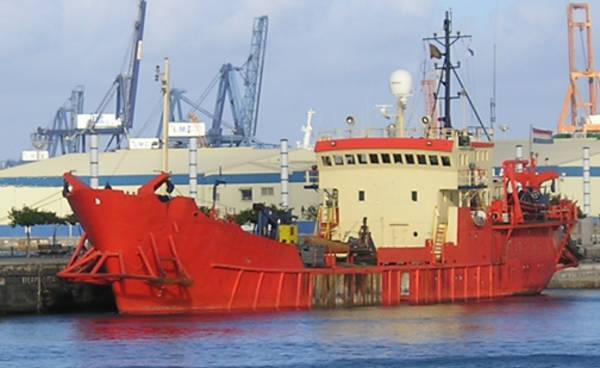

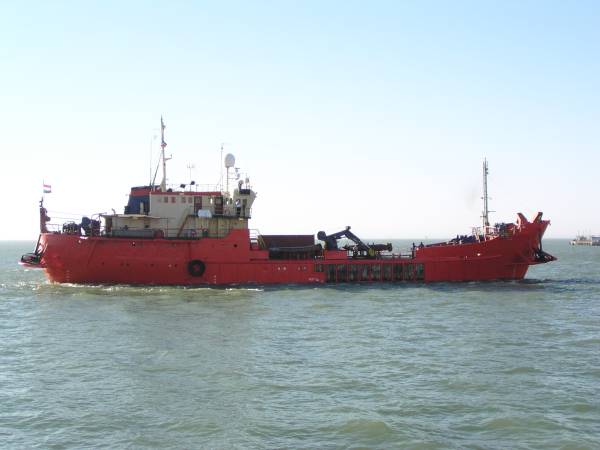

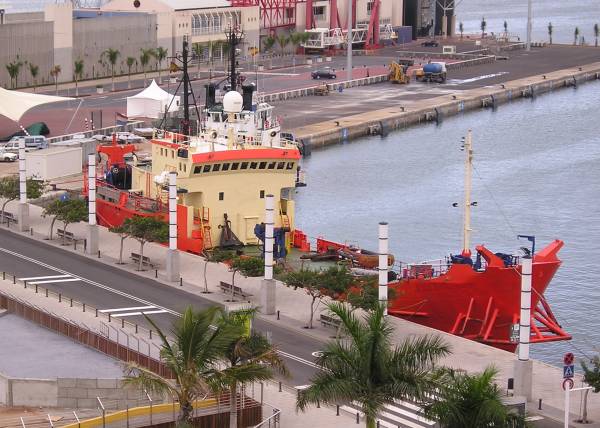

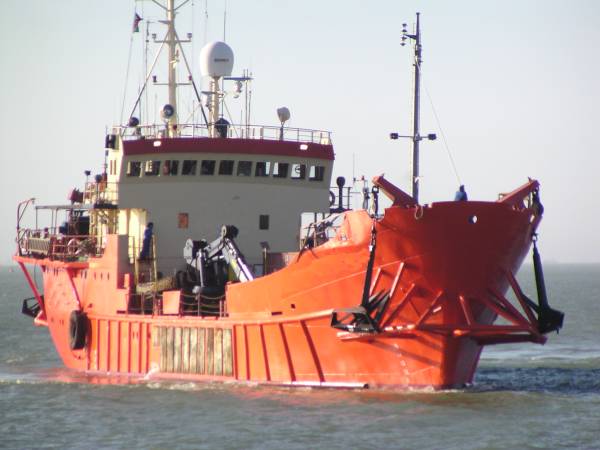

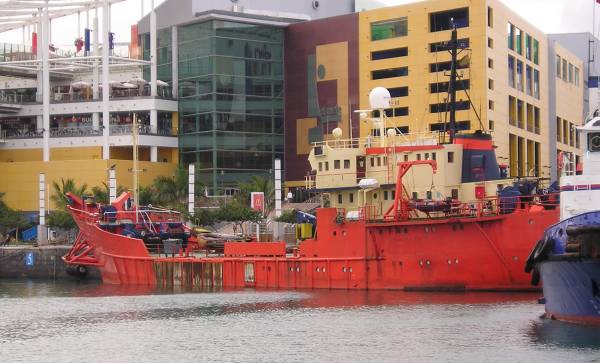

Sold - Survey/Dive Support Vessel

Press to Return to Other Vessels Press to Return to Home Page

This vessel has a 4 point mooring system with bow thruster and azimuth thruster with very good maneuvering capability.  She has accommodations for 32.  She is especially suitable as a dive support vessel and geotechnical/Geophysical Survey Vessel.  Her crane has a capacity of 62 Metric Tons and a 5 ton runner winch.

VESSEL IDENTIFIER: VDW10

Price: U.S. $ 795,000.00

PARTICULARS

  Feet Meters
Length 194 59
Breadth 30 9.1
Depth 18 5.5
Draft 17 5.2
Speed 7 Knots
Fuel Consumption 3,000 Liters/day @ 7 Knots
2,000 Liters/day @ sidescan operation
500 Liters/day in Port
Range 5,500 NM







PARTICULARS
Flag Dutch
Year Built 1959
Last Dry-docked May 2003
Location Brazil
Class BV SS January 2006

GRT

734





Power

Main Engines

750 HP Caterpillar D398
Generators 2x270 KVA 440V/60hz
Propeller
Thrusters 350 HP aft of Midship
300 HP Tunnel variable Pitch
Deck Crane 62 MT
5 MT at 11 Meters
Water Capacity
Fuel Capacity 100 Tons
