SOLD - Equipment

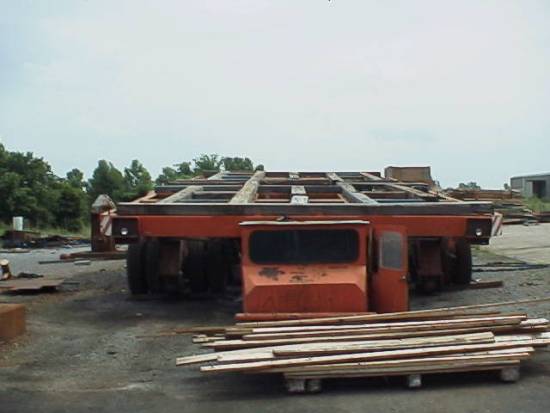

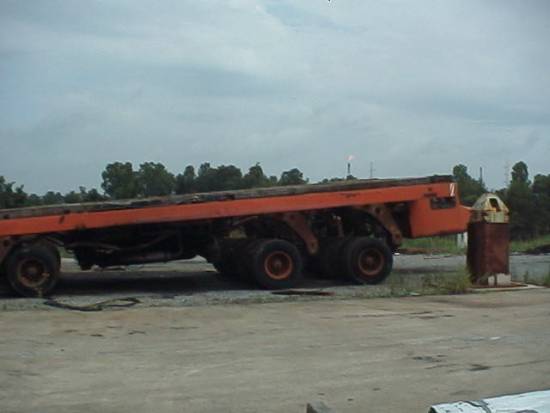

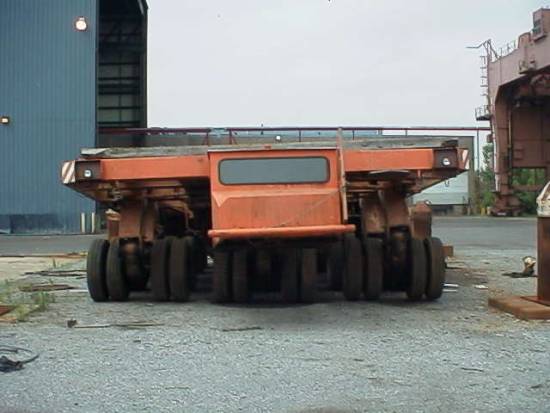

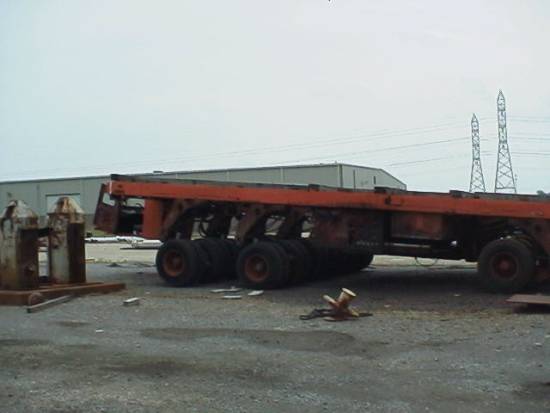

This 225 Ton Capacity Transporter is available in Memphis, Tennessee in the
USA. She is operational, however has some un-repaired cab damage.
REF: SON10
PRICE: U.S. $200,000.00
|
Description |
||

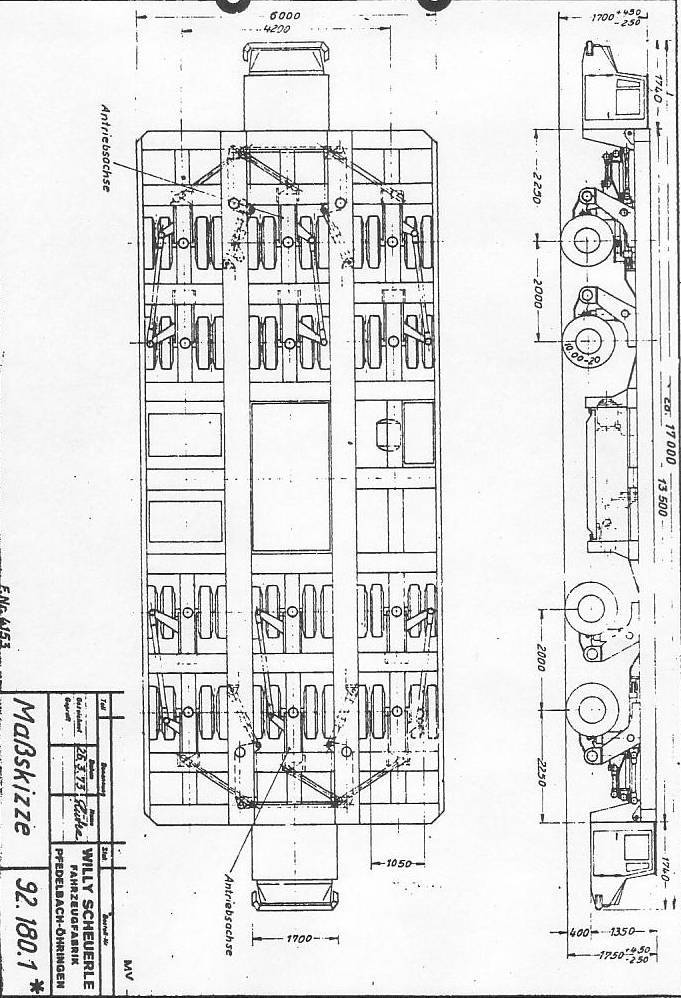

| Overall Length | 17,000 mm | 55.77 Feet |
| Height | 1500 mm min. 2200 mm max. | 4.9 Ft. Min. 7.2 Ft. Max. |
| Loading Area | 13,500 mm x 6,000 mm | 44.29 Ft. x 19.68 Ft. |
| Maximum Speed (0% Slope) | 6 KM/hr loaded 16 KM/hr unloaded | 3.72 MPH Loaded 9.9 MPH unloaded |
| Maximum Slope | 2 KM/hr at 3% slope | 1.2 MPH at 3@ slope |
| Total Weight | 264,000 Kilos | 582,014 lbs or 281 tons |
| Empty Weight | 60,000 Kilos | 66 Tons |
| Payload Capacity | 204,000 Kilos | 449,738 Lbs. or 224.8 Tons |
| Axle Lines | 4 lines with 3 with 4 tires axles each Line | |
| Maximum Load per Axle | 22,000 Kilos | 48,501 - 24.5 Tons |
| Tires | 48 Tires size 1000-20/16 Ply | |
| Engine | Deutz Type 413/314 Horsepower | |
| Steering | All Axles are hydraulically Steered | |
| Brake System | Spring loaded air system | |
| Manufacturer | Scheuerle - Germany | |
| Year Built | ||
