Under Sales Contract - Supply Vessel

Press to Return to Supply Vessels Press to Return to Home Page

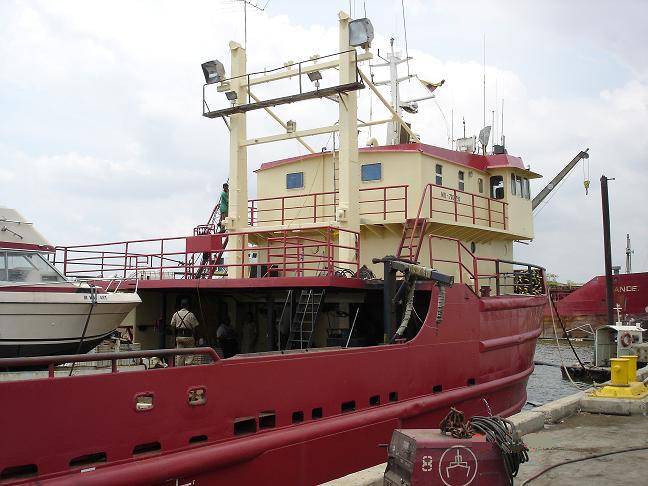

VESSEL IDENTIFIER: SEM11

Click here for More Photos

Price: U.S. $1,300,000.00 PRICE REDUCED $950,000.00 - $750,000.00

DIMENSIONS
Feet Meters
Length 147.8 45.29
Width 36.1 10.96
Draft 12 3.66
Speed 10 Knots
Range 1,000 gallons per day



PARTICULARS
Flag Panama
Year Built/Re-built 1963/2003
Location Mexico
Class International Maritime Bureau
Next Special Survey June 2013
GRT 61#
NRT 184
DWT 530

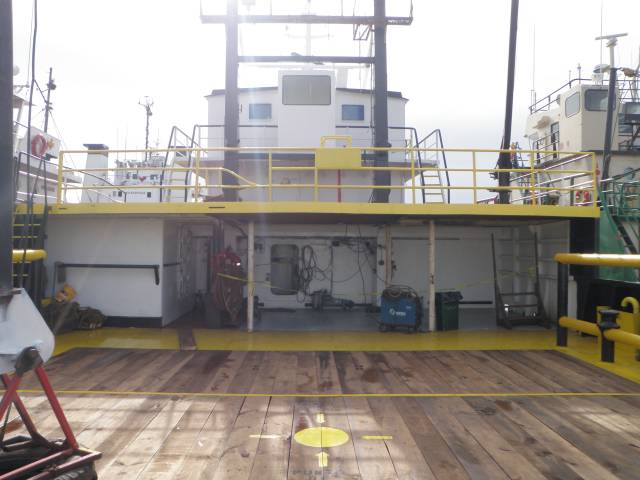

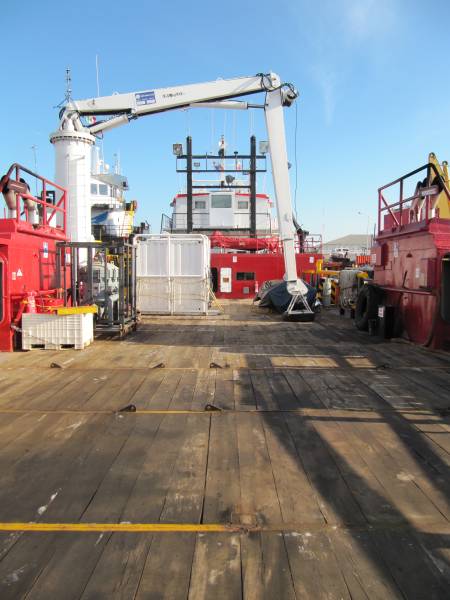

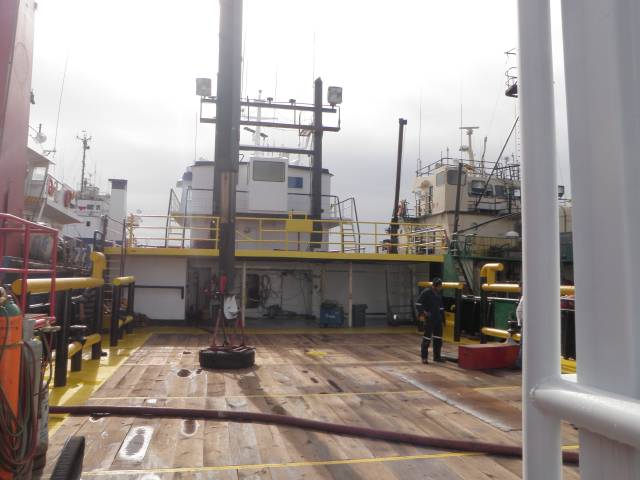

Deck Area 201.5 Square Meters
Deck Capacity 400 tons

MORE INFORMATION AND PICTURES BELOW



Power

Main Engines

2 - Caterpillar  D-398
Total HP 1,700
Reduction Caterpillar 3192 3.91:1
Propeller 2 - 4 Blade 72 inch
Generator 2 Caterpillar 3406
Bow thruster Hydraulic 250 HP
Winch NO

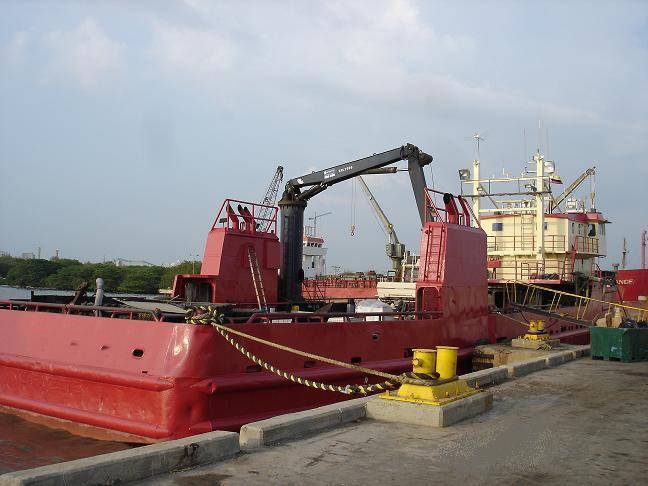

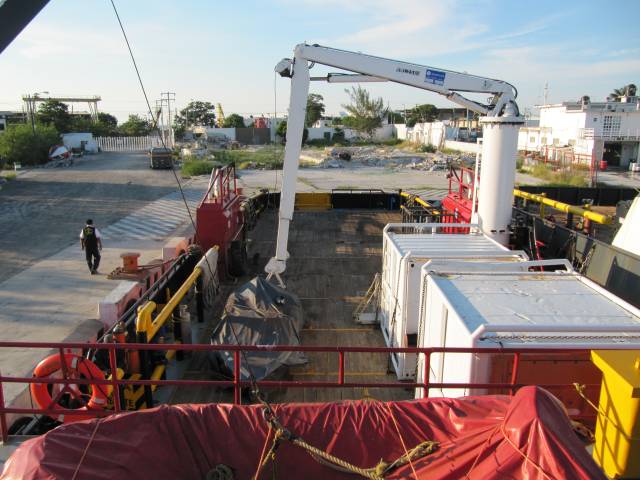

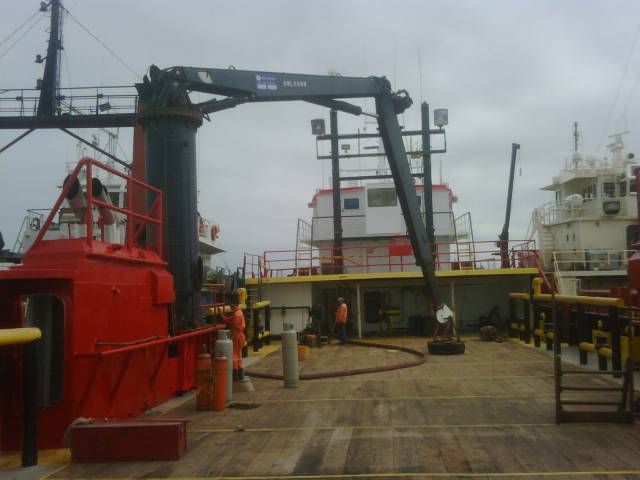

Deck Crane 6 Metric Ton at 18 Meters
Water Capacity 26,000 Gallons
Fuel Storage 132,000 Gallons





Navigation/Electronics

Radar

 2 - Furuno 7100d and model 1941
Autopilot 2 - Sperry 8T
GMDSS 2
Compass Gyro Sperry MK37
Echo Sounder Raytheon F7200 Flasher
Radios Yes
Other Electronics Yes



Accommodations

Rooms

 30 Bunks
Dining Yes
