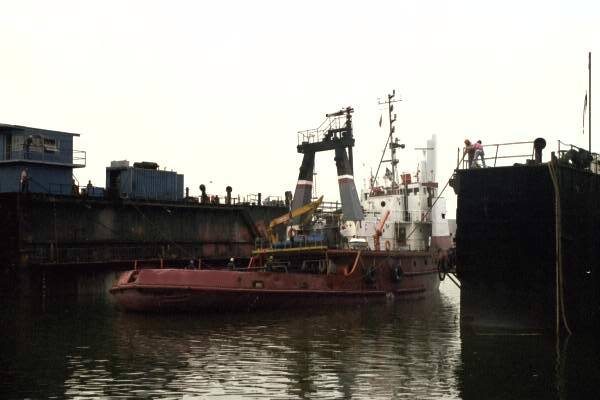

De-Listed - Tugboat
This Tug is maintained very well, by a qualified crew. It was Dry-docked in July 1998 in Florida, she is currently out of class in the Houston area.
VESSEL IDENTIFIER: OT10
Price: U.S. $ 700,000.00 Make only US$600,000.00 BEST OFFER, NEEDS
EXTENSIVE REFURBISHING
DIMENSIONS |
||
| Feet | Meters | |
| Length | 126 | 38.4 |
| Breadth | 31 | 9.45 |
| Draft | 13 | 4.0 |
| Free Speed | 10Knots | |
| Range | ||
| PARTICULARS | |
| Flag | Panama |
| Year Built | 1966 |
| Where Built | United Kingdom |
| Registry | Panama |
| Class | .Rinave - Pandi Cober |
| Gross Registered Tons | 536 |
| Net R. Tons | 42.33 |
| Complement | |
MORE INFORMATION AND PICTURES BELOW
| Power | |
Main Engines |
Twin Ruston 6 Cyl., 1,840 each, 3,680 HP Total Per Owner |
| Reduction | |
| Propeller | |
| Bollard Pull | 47 Tons |
| Rudders | |
| Equipment | |
Generators |
Two Detroit 400HP/250kW DC & 60 kWAC Detroit 200HP/100kW DC & 50 kW AC |
| Aux. Generator | Detroit 200 /60 kW DC & 50 kW AC |
| Winch | Two Port Side 2 1/4"x2,000 Ft Wire Stb. 1 7/.8" 2,300' Wire |
| Fuel Storage | 67,000 Gallons, 1,500/day Free, 1,800 with tow |
| Navigation Equipment | |
Bridge Controls |
|
| Radar | 2 - Koden 32 Miles/Anritsu 96 Miles |
| GPS | 2 - Furuno 1600/Gramin 45 |
| Auto Pilot | Furuno FAP-330 |
| Echo Sounder | Marconi |
| Radios | Satellite System #1888-735 1678 |
| Other Equipment | |
| Deck Machinery | |
Windlass |
|
| Deck Crane | 1 1,500 KG/3,300 Pounds |
| Accommodations | |
Accommodations |
8 Cabins |
| Mess | Yes |
| Galley | Yes |
| Air Conditioning | All Accomodations |
| Safety Equipment/Other | |
Life Rafts |
Yes Plus Zodiac |
| Fire Fighting | |
| Other Equipment | |
