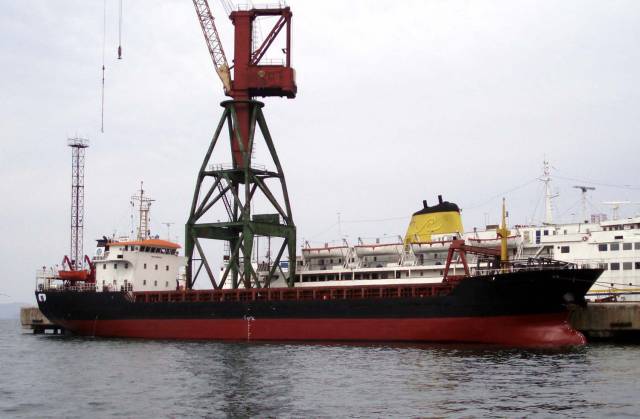

Cargo Ship

Press to Return to Ships for Sale Press to Return to Home Page

This ship has a gate crane for opening the hatches.  She has a full electronics package including GMDSS A1, A2, A3.  She was dry-docked and painted black with Ipoxy paint during her annual class survey in October 2006.

VESSEL IDENTIFIER: OLE10

Click here for Photo Page 1 Click Here for Photo Page 2

Click here for Photo Page 3

Price: U.S. $  3,750,000.00 PRICE REDUCED US$ 3,450,000.00 3,300,000.00 FIRM for this almost new vessel.

DIMENSIONS

Length  272.3 83
Breadth 43.3 13.2
Draft  15.95 4.86
Speed 10 Knots
Consumption 4.2 IFO + 0.3 MGO





PARTICULARS
Flag Cambodia
Year Built 2005 - China
Current Location Far East
Last Dry-docked October 2006
Class GMB (Global Marine Bureau)
GRT/NRT 2039
DWT 2987
LDT 1144
Displacement 4131 Tons





Equipment
Main Engine Model is LB8250ZlCz-2; Type: Straight four stroke, direction injection, supercharged, air inter cooling; NO of cylinders:8;
    Bore 250mm; Stroke 320mm; Rated speed 750 r/min, Starting method: air motor starting;
    M/E control from engine room and from bridge, because the M/E has only clockwise rotation and Vessel reversing control by main gear.
   (But engine room is not unmanning)
Generators Nantong Diesel Engine Co., Ltd, 6135 Series Marine Type Diesel Generator Set  X 2 pcs.  Model: 6135 ACa; 120kwt; 1500 rpm. Consumption 0.5 t/day, MGO.
DSM120-50
She  has  two Alternator: DSM120-50-00 X 2, 380 V.
      Also She has emergency diesel-generator with 56 kWt of power.
Bow Thruster NO
Fuel Capacity 140 Tons IFO
30 Tons MGO
Fuel Type Shell MFO-30
Holds 2 Holds, Box shaped 3,570 Cubic Meters
Crew Requirements According our flag minimum safe manning must no less than (master, ch.mate, deck officer, 2(two)watch keeping deck rating,
        one(1) deck rating, one (1) ch.eng.; one(1) second eng., one (1)watch keeping engine rating.  (total 9 mens))
Currently using 13-14 Crew, space for 20.
Tank Top Strength Tank top is 7,2 mt/m2 (with grab discharge) and
    maximum 8 mt/m2 (without grab discharge)
