De-Listed - Fishing Vessel

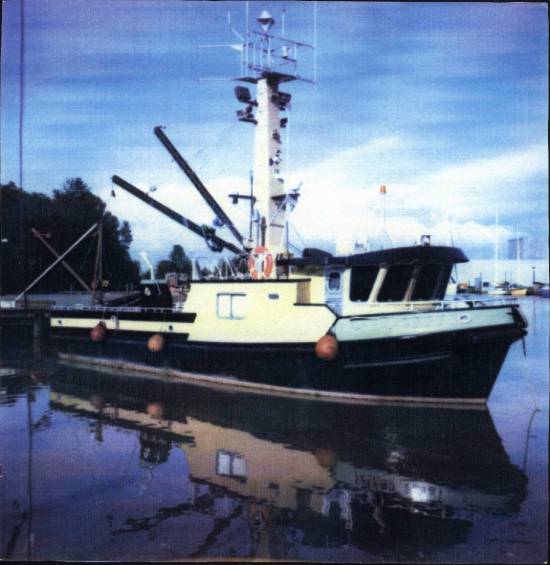

This is a twin screw with 2 John Deere 250 H.P. each engine
with zero hours and ZF gear boxes. All cabin and above deck construction
is all new aluminum and bulwarks. There are 6 fuel tanks and twin hydraulic
systems for all hydraulic requirements. This vessel was built for a combination
packer and towing of barge. Vessel is equipped for transvac pumping and Hiab
installation. Cruising speed is estimated to be 15 knots. Boom system includes
Pullmaster winches single fall and topping lift and Vanging winch. It has a
Yanmar auxiliary backup. Vessel is also equipped for fire fighting and salvage
work. Galley is a fully serviced 110 volt system with all amenities. Everything
on this vessel is new, all with zero hours requiring startup. Speed and fuel
consumption to be proven. This vessel is excellent for towing, packing,
crabbing, live aboard, or a conversion to tourist. The after deck has 22 feet of
open space for whatever consideration. Vessel is 95 % completed. More details on
request
VESSEL IDENTIFIER: MGW11
Price: U.S. $300,000.00
DIMENSIONS |
||
Feet | Meters | |
Length | 50 | 15.2 |
Breadth | 15 | 4.5 |
Depth/Draft | 5 | 1.5 |
Speed | 15 Knots | |
Range | 375 Continuous Hours |
PARTICULARS | |
Flag | Canadian |
Year Built | 1997 Not Complete Yet |
Where Built | Canada |
Class | Yes |
Certificates | Registered and Blue Book |
GRT | 13.6 |
Cargo Capacity | Est. 18,000 Pounds |
Ice Maker |
Power | |
Main Engine |
2 - John Deere Consumption 8 GPS |
Generators | 2 QM Generators - Davidson 100 Amp Alternator |
Fuel Capacity | 3,000 Gallons |
Water | 1,000 Gallons |
Navigation/Electronics | |
Radar |
Yes |
Gyro | |
ECDIS | |
Autopilot | Yes |
RDF | |
Radios | CB-VHF-SSB |
Other Electronics | Loran C, Video Sounder X2 |
HULL:
TYPE VESSEL: COMBINATION?
VESSEL NAME: ISLAND SCOUT
LENGTH:50 FT
BEAM :15 FT
DRAFT:5 1/2 FT
GROSS TONS:14.72
NET TONS:10.01
BUILDER: SUNSET COAST FABRICATORS
BUILT AT: PARKSVILLE B.C.
OFFICIAL NUMBER: 396188
HULL CONSTRUCTION: STEEL 1/4'' PLATE
CABIN CONSTRUCTION: ALUMINUM
MACHINERY:
ENGINE: 2 TWIN JOHN DEERE'S
H.P.:250 HP EACH
HOURS:0 HRS
REDUCTION GEAR:ZF-2.699-1
VOLTAGE:12 & 24 & 110
BATTERIES:4 X 8D 12 VOLT
AUXILIARY MOTOR: YANMAR 2QM,
FUEL CAPACITY:2800 GALLONS
NO OF TANKS:6
WATER CAPACITY:1000 GALLONS
NO OF TANKS:1
STEERING: WAGNER
NO OF STATIONS:2 STN
WINCHES: SINGLE FALL- TOP LIFT -VANG
LINE SIZE:1/2 INCH
ANCHOR WINCH: ALUMINUM HYD
LINE CAPACITY:75 FTM CABLE 20FTM CHAIN
PROPELLER SIZE:28 X 25 4 BLADE X 2
SPARE PROP:NO
KORT NOZZLE:NO
SHAFT SIZE:2 1/2 IN EACH
MATERIAL: STAINLESS STEEL
BOW THRUSTER:NO
DECK EQUIPMENT:
BOOM: ALUMINUM SCH 80
DECK WINCH: TOWING PAD INSTALLED
GEARMATICS:PL2 SINGLE PL2 VANG & PL2 TOP LIFT
HOLD TYPE: INSULATED & GLASSED SLUSH TANK OR HOLDING
ELECTRONICS:
VHF: SEA-TEC - CB 1
SSB:1 ICOM
RADAR:1 INSTALLED 2ND PREWIRED
SOUNDER:1 VIDEO 1 DIGIT
WIND INDICATOR: NO
AUTO PILOT: WAGNER
SONAR: NO
LORAN: YES
OTHER: FULL ALARM SYSTEMS THROUGHOUT
SAFETY EQUIPMENT:
LIFE RAFTS:PROVIDED
LIFE BOAT:N/A
LIFE RINGS:2 WITH STROBES
OTHER:LIFE JACKETS 5
LAST DRY DOCK:1998
LAST SURVEY:1998
PUMPS:1-2INCH JAPSCO 1 HYD
FIRE HOSES:TWIN SYSTEMS
FIRE EXTINGUISHERS: EVERY ROOM
ALARM SYSTEM: DUAL AUTOMATIC
ACCOMMODATIONS:
GALLEY: FULL COMPLEMENT
FRIDGE:1 FRIDGE FREEZE
STOVE: DICKINSON STAINLESS OIL
NO OF STATEROOMS:2
NO OF BERTHS:4
SHOWER: ENCLOSED
HEAD :ENCLOSED
HOT WATER: PRESSURIZED ELECTRIC & HEAT EXCHANGE
OTHER COMMENTS:
HULL SPEED:15 KNOTS
CONTROLS: MICRO COMMANDER DUAL
RIGGING: FREE STANDING MAST
STATUS:
Price includes completion of vessel and start up. Possible start up warranty
available. All cabin construction and interior is brand new . Galley - 110 volt
system throughout with microwave and household appliances. Plans and
preparations to convert aft deck to cover in aluminum housing in progress.
