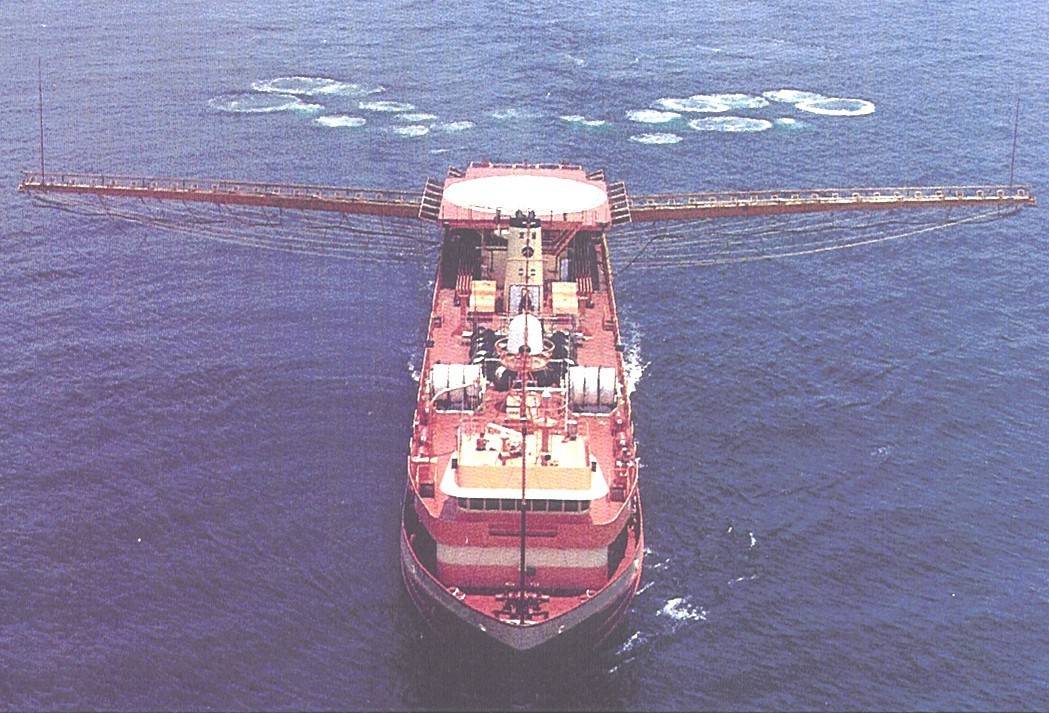

SOLD - Seismic Vessel
This 2D Seismic vessel comes with compressors. The Helideck has been removed. She is not presently in class and requires extensive work to become operational again.
VESSEL IDENTIFIER: MAY12
Price: U.S. $2,950,000.00, BEST OFFER I suggest under $1.5 Million
DIMENSIONS |
||
| Feet | Meters | |
| Length | 209 | 64 |
| Breadth | 40 | 12.2 |
| Draught | 14.1 | 4.3 |
| Speed | 10.5 Knots | |
| Range | ||
| PARTICULARS | |
| Flag | US |
| Year Built | 1982 |
| Where Built | US |
| Registry | US |
| Class | ABS INTL Loadline (OUT OF CLASS PRESENTLY) |
| Certificates | Solas Approved |
| Displacement | 1,472 Tons |
| Last DD | March 1996 |
| Complement | |
MORE INFORMATION AND PICTURES BELOW
| Power | |
Main Engines |
2 x Caterpillar 3516, 3200 BHP |
| Bow Thruster | 400 HP Tunnel 12V71 Detroit |
| Generators | 2x Caterpillar 3406 210 KW |
| Other | Dual Fresh Water Makers - Village Marine RO PW3000 |
| Water Capacity | 130,000 Gallons |
| Navigation/Electronics | |
Radar |
Dual Furuno, Anritsu High |
| Autopilot | Sperry/Speed Log, Sperry |
| Marsat | |
| Gyro Compass | Sperry Mark-37, SR130 |
| Echo Sounder | |
| Radios | |
| Speed Log | |
| Other Electronics | Cellular Phone and Weather Fax |
| Accommodations | |
Accommodations |
42 and 1 hospital bed |
| Life Raft Capacity | 80 |
| Medical Facility | Two Bay |
SEISMIC COMPRESSORS………………………………. (2) Cherco 4 Stage 1400CFM
COMPRESSOR DRIVES………………………………… (2) CAT D-399
STREAMER REELS……………………………………... Lower 7,400 Meter Capacity
Upper 2,300 Meter Capacity
GUN WINCHES / REELS……………………………….. 2 Doubles per side
GYROCOMPASS………………………………………… Sperry MK 225
INSTRUNMENT ROOM………………………………… 512 Sq. Ft.
RECORDING ROOM……………………………………. 384 Sq. Ft.
NAV. ROOM……………………………………………… 128 Sq. Ft.
AFT. GUN SHOP…………………………………………. 196 Sq. Ft.
GUN WORKSHOP………………………………………... 224 Sq. Ft.
COMPRESSOR WORKSHOP……………………………. 224 Sq. Ft.
