SOLD - Seismic Vessel

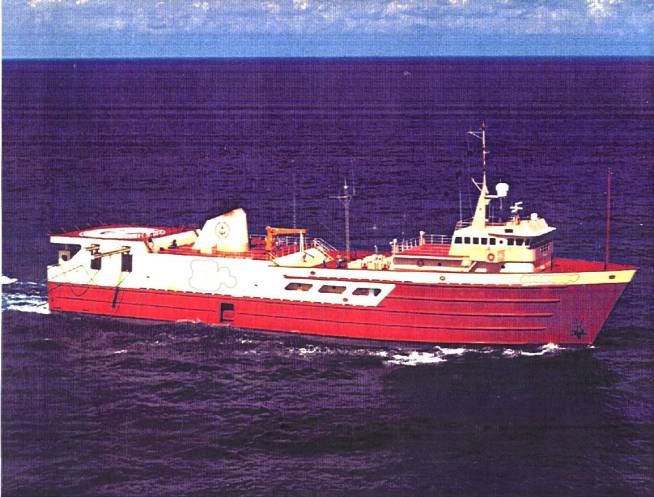

This 2D/3D Seismic vessel comes with compressors. It is equipped with a 42 Foot Helideck, has AFFF deluge Fire fighting system. We will post photos soon.
VESSEL IDENTIFIER: MAY11
Price: U.S. $ 8,975,000.00
DIMENSIONS |
||
| Feet | Meters | |
| Length | 221 | 67.4 |
| Breadth | 46 | 14 |
| Draught | 16 | 4.9 |
| Speed | 12 Knots Cruise | |
| Range | 45 Days | |
| PARTICULARS | |
| Flag | US |
| Year Built | 1984 |
| Where Built | US |
| Registry | US |
| Class | ABS INTL Loadline Vessel Type B |
| Certificates | Solas Approved |
| Gross Registered Tons | 299 |
| Net R. Tons | |
| Complement | |
MORE INFORMATION AND PICTURES BELOW
| Power | |
Main Engines |
2 x Caterpillar Model 3516, 1410 HP each, 2820 Total |
| Thruster | 3408 Caterpillar, 400 HP Kahlenbery Wheels with Kort 92"x67", Nozzles |
| Propeller | 2 x Variable pitch Kort Nozzles |
| Equipment | |
| Max Sub. Arrays | 6 |
| Source Gun Controller | Syntron, Inc. GCS 90 |
| Drive | 2 x Caterpillar 3516 |
| Total Capacity | 3200 SCFM (7540 CI. INS.) |
| Operating Pressure | 2,000 PSI |
| Navigation/Electronics | |
Radar |
1 x Atlas 7600 ARPA |
| Autopilot | Robertson AP9/Sperry |
| Marsat | Navidyne ESZ10000 |
| Gyro Compass | Sperry SR 220 and MK227 |
| Echo Sounder | Simrad /CF130 |
| Radios | 1 SEA 222 SSB Radio 2 x Horizon Eclipse 1 x Sailor VHFRT 2048 |
| Speed Log | Yokogawa Novitec EMLOG LT 201 |
| Other Electronics | YES |
| Accommodations | |
Accommodations |
40 |
| Dining | |
| Shower | |
