De-Listed - Lifting Barge

Press to Return to Barges Press to Return to Home Page

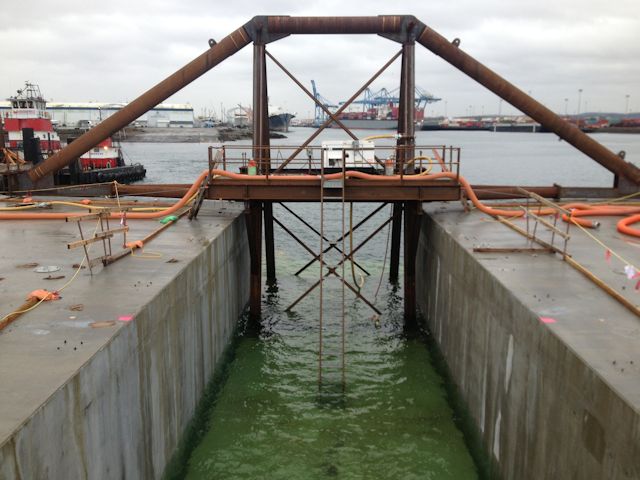

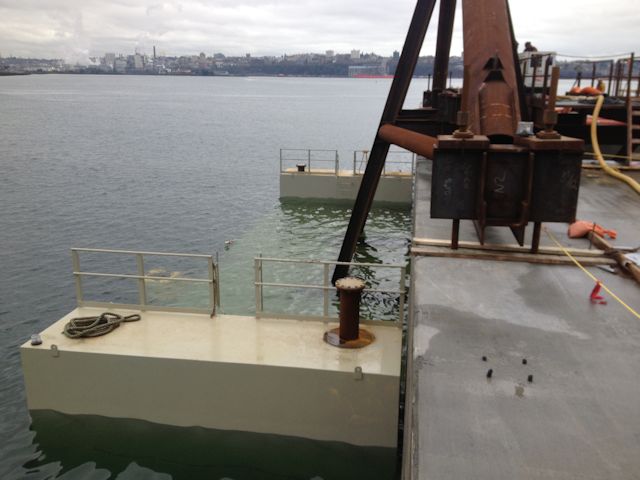

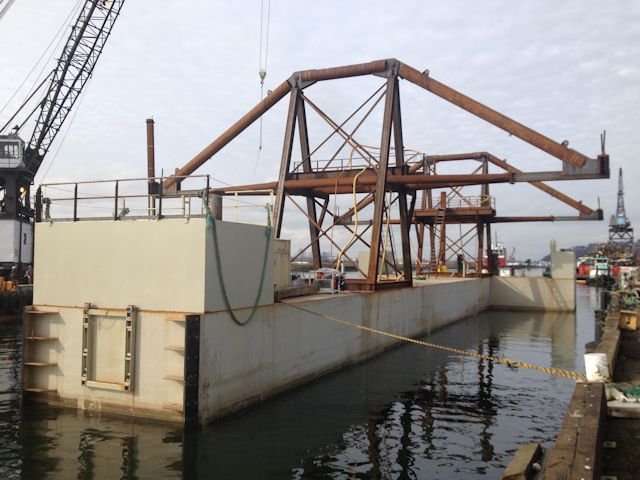

This unique custom lift barge was built to lift concrete floating pontoons out of the water. The barge is built in the shape of a "T", 170ft long, 70ft wide, with 12ft side shell. Light ship draft of 2ft. This barge works with an air ballast system, using air pressure to create lift. It has a 1500 ton lift capacity and will draft 11.5ft at 1500ton. The barge with fully submerse if desired and will remain stable while submersed. Using a single 1600 cfm air compressor, it takes 20 minutes to resurface the barge and bring it back to a 2ft draft. This barge has excellent potential to be modified into a submersible dry dock. The barge also includes spud pockets and 90ft spuds.


VESSEL IDENTIFIER: KEW10

Price: U.S. $ 112,000.00 FIRM

DIMENSIONS

Feet
Length 170
Width 70
Depth 12
Draft 2
Flag US
Location Tacoma, Washington
