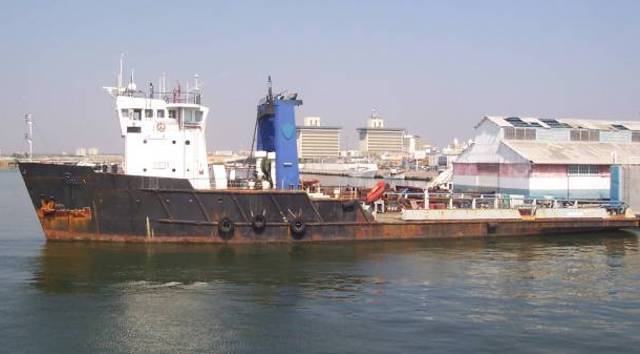

De-Listed-Anchor Handling Tug Supply Vessel

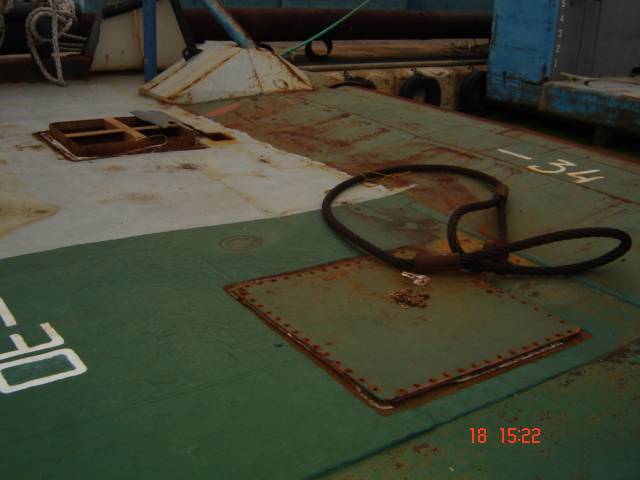

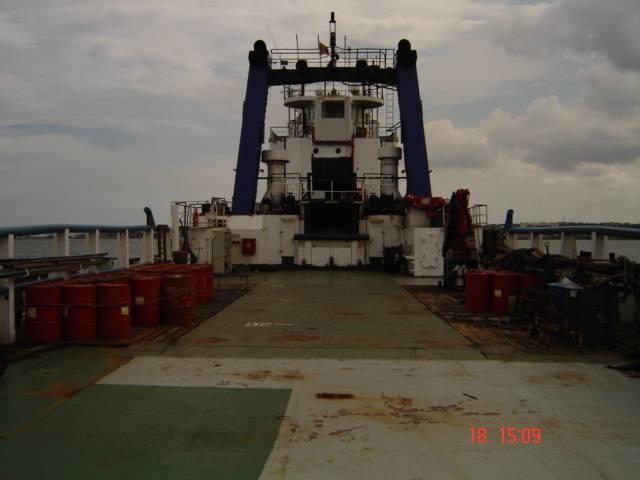

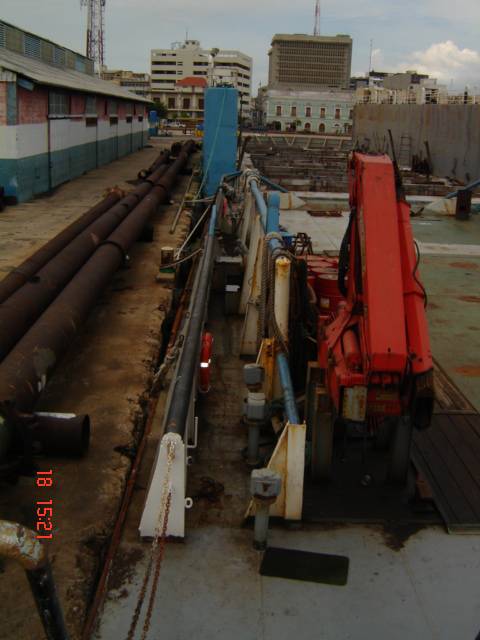

This Supply vessel can carry 18 TEU Containers on her 330 Square meter deck. She has a service hydraulic crane with a 2.5 MT SWL capacity. She has a full electronics package.
VESSEL IDENTIFIER: JEM10
Price: U.S. $1,600,000.00 FIRM - NO LOWER OFFERS PLEASE
DIMENSIONS |
||
| Feet | Meters | |
| Length | 195 | 59.45 |
| Breadth | 42.6 | 13 |
| Draught | 14'3" | 4.35 |
| Speed | 12 Knots Service, 14 Knots Max. | |
| Range | 5,500 Nautical Miles | |
| PARTICULARS | |
| Flag | Venezuela |
| Year Built/Re-built | 1973/1991 |
| Where Built | B.V. Jonkers and Stans |
| Location | Venezuela |
| Class | Former Panama |
| Certificates | |
| GRT | 894 |
| DWT | 1098 |
| Complement | |
MORE INFORMATION AND PICTURES BELOW
| Power | |
Main Engines |
2 - Ruston Diesel 16RK3CM @ 3,500 HP each or 7,000 HP Total |
| Reduction | Ohmann & Sotlterfoht type GUD630 Ratio 3.79:1 |
| Propellers | 2 Fixed Pitch in KORT Nozzles |
| Generators | 3 - 263 KVA Each 1 - Emergency 120 KVA |
| Bow Thruster | Caterpillar 378 Gill Jet 570 HP |
| Fuel Storage | 360.8 Metric Tons |
| Fresh Water | 186.4 Metric Tons |
| Ballast Water | 361.6 Metric Tons |
| Foam | 4 Metric Tons |
| Fuel Oil Pump | 102 Cubic Meters per hour at 75 Meter Head |
| Fresh Water Pump | 102 Cubic Meters per hour at 75 Meter Head |
| Ballast Pump | 102 Cubic Meters per hour at 60 Meter Head |
| Fuel Consumption | |
| Equipment | |
| Anchor Handling winch | 2-Anchor Handling Winches 3-54mm towing wires 800 Meters 1,100 Meters 1,200 Meters 4 point mooring capability Hydraulic towing/anchor Ysselerf, Type L109 Tractive power: 160 Tons |
| Wire Handling winches | 2-Hydraulic 5 tons each |
| Fire Equipment | 2 Monitors 1-35 cubic Meters/hour at 36 meter head |
| Accommodations | |
Rooms |
|
| Dining | |
| Shower | |
