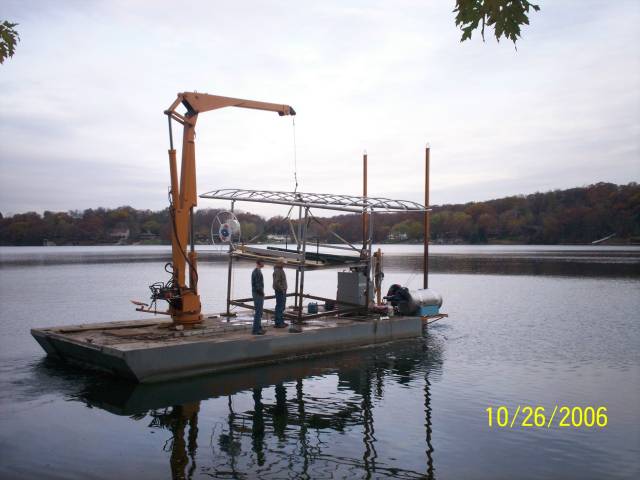

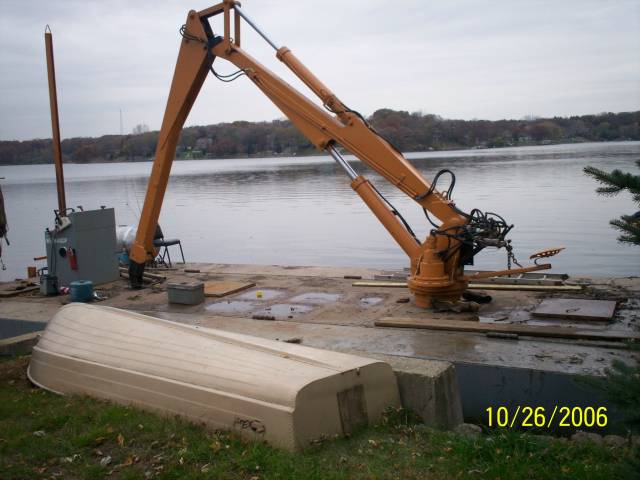

De-Listed - Truckable Crane Barge

Press to Return to Barges Press to Return to Home Page

This barge is made up of one 9 foot wide and two 3 foot sections so it can be taken apart and moved by truck.  The price includes a tandem axle 25 ton trailer.  She has always been in fresh water and she has a  4 cylinder Isuzu engine which powers the hydraulics.  She was built with 3/16" steel on the sides and 1/4" deck plate.  Her 2' channel frames are on 4 foot centers.

VESSEL IDENTIFIER: JDU10

Price: U.S. $ 150,000.00

DIMENSIONS

  Feet Meters
Length 40 12.2
Breadth 15 4.57
Depth 3 .9
Draft 1 .3

PARTICULARS
Flag US
Year Built 2003
Where Built USA
Capacity 12 Tons
Main Engine Yamaha 100 HP 4 stroke on Jack plate 2 years old
Speed 10
Construction Steel
Location Wisconsin
Fuel Capacity 80 gallons Gas
25 gallons Diesel
Spud 24' Hydraulically driven spud in rear
Hydraulics 40 Gallon tank with Micron filters and Aquamarine Oil

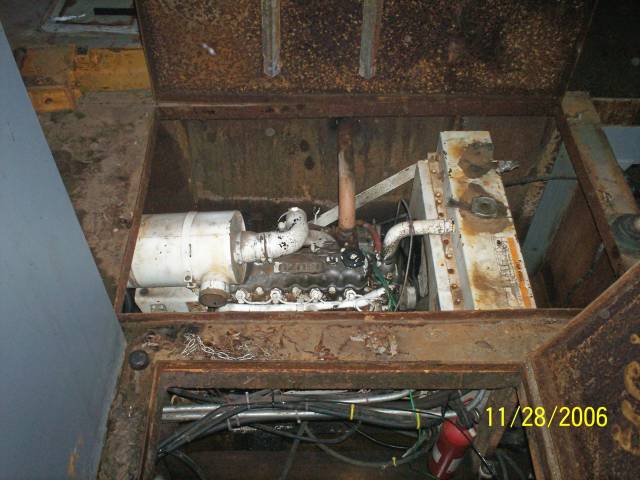

MAIN ENGINE

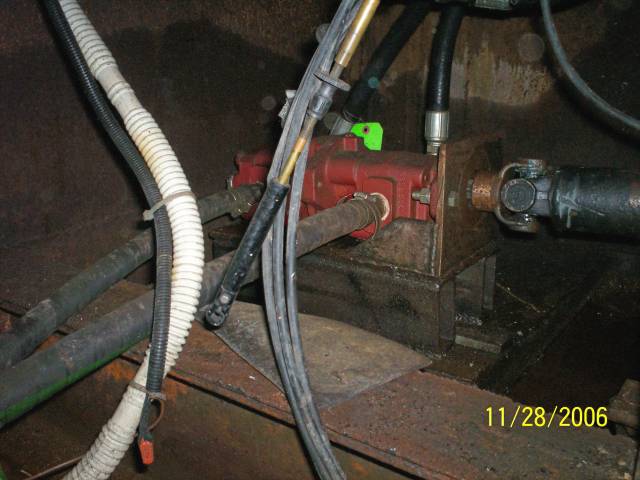

Hydraulic Pump

Hydraulic Pump Motor
