SOLD - Supply and Seismic Support Vessel
This well maintained Supply Vessel has crew accommodations of 23 bunks, 3 Single berth cabins and 10 cabins with two berths. I have inspected this vessel and find her to be in very good condition and well priced.
VESSEL IDENTIFIER: HEL10
| Click Here for Photo Page 1 | Click Here for Photo Page 2 | Click Here for Photo Page 3 | Click Here for Photo Page 4 |
Price: U.S. $
DIMENSIONS |
||
| Feet | Meters | |
| Length | 191 | 58.25 |
| Breadth | 41.3 | 12.8 |
| Draft | 17 (Max) | 5.2 (Max) |
| Speed | 13 Knots Max | |
| Range | 15,000 NM at 11 Knots | |
| PARTICULARS | |
| Flag | Panama |
| Year Built/Re-furbished | 1973/2003 |
| Where Built | Canada |
| Location | Poland |
| Class | Panama OCMS (Fresh) |
| Certificates | |
| GRT/NRT | 1075/591 |
| DWT | 1,100 |
| Complement | 7 Min. Safe Manning |
| Bollard Pull | 65 Tons |
MORE INFORMATION AND PICTURES BELOW
| Power | |
Main Engines |
4 Nohab Polar
SF13RS - 4,200 HP |
| Auxiliary Engine Generator | 1 - Caterpillar 3406 2 - GEC287.5 KVA 1 - Cat 287.5 KVA 1 - GEC 175 KVA |
| Propeller | 2 LIPS HMF Controlable pitch in steerable Kort Nozzels |
| Bow Thruster | "Gill Jet" like a Azimuth 360 dgr. |
| Fuel Storage | 860 CUBM |
| Fuel Consumption | 20 CUBM Max. Speed 9 CUBM Economy Speed |
| Equipment | |

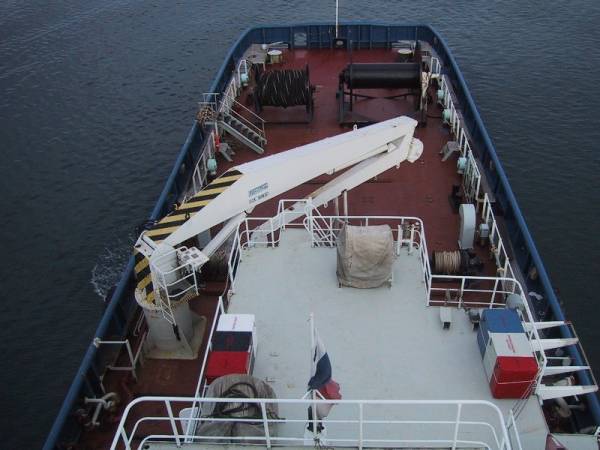

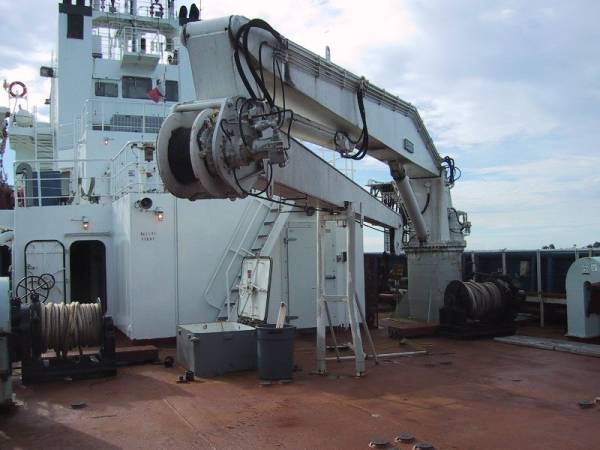

Deck Crane |
5.5 Ton/ 15 Meter Hydralift KMCV 1400 |
|
Anchors |
2 |
| Windlass/Winches | 2 - Hydraulic Forward and aft Windlass 2 - Hydraulic Forward and Aft Mooring winches |
| Fire Control | Hamworthy 40 CUBM Main fire pump Hamworthy 40 CUBM Emergency Fire Pump 2 Water guns on Mast Engine Room - CO2 |
| Former Winch Equipment | The winch
onboard was removed but the Power Pack System is still there. There is one aggregate driven two pumps with capacity of 2x90 Kwt deliver 800 liter / Minute. Pressure capacity 50-250 PSI. There is also a aux. pump given 25 liters/ minute. This pump is also use for start up of the tugger winches |
