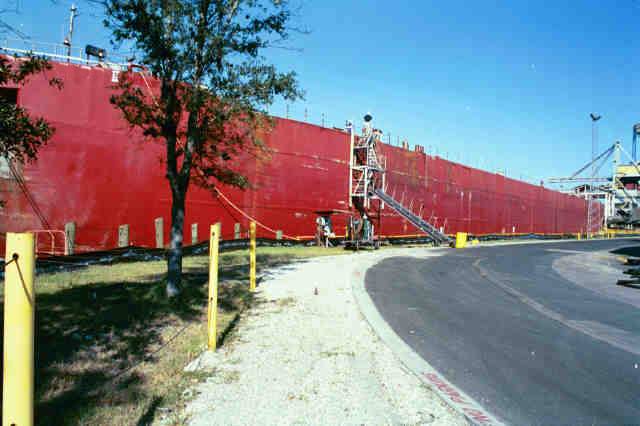

The barge has four compartments and 16 hatch covers though it is one large hold. The cargo discharge system is made up of two belts port and starboard that run from the stern forward, then crossover belts carry the material to the center and up a belt to unload on a belt either to Port or Starboard. This tug and barge appear to be in excellent condition inside and out.
VESSEL IDENTIFIER: GT12
Price: U.S. $ 5,750,000.00 (En
Bloc) as-is-where-is out of class
$2,475,000.00 for the tug As-is-where-is out of class FIRM
$2,100,000.00 for the barge As-is-where-is out of class FIRM
$4,435,000.00 En Bloc As-is-where-is out of class Total FIRM
$3,095,000.00 for Tug put back in class by owners FIRM
$2,680,000.00 for Barge put back in class by owners FIRM
$5,775,000.00 En Bloc put back in class by owners FIRM
BARGE DIMENSIONS/PARTICULARS |
||
| Feet | Meters | |
| Length | 472.5 | 144 |
| Breadth | 80 | 24.4 |
| Depth | 42.8 | 13 |
| Draft | Summer Draft 30 Ballasted Draft 12 Light Draft 7 |
Summer Draft 9.15 Ballasted Draft 3.66 Light Draft 2.13 |
| DWT | 25,000 Tons | |
| Flag | Foreign | |
| Year Built | 1968 | |
| Class | ABS Iron Cross Through 12/2000 |
|
| Discharge System | Belts - 2,500
Tons/hour +/- Shore Power Required |
|

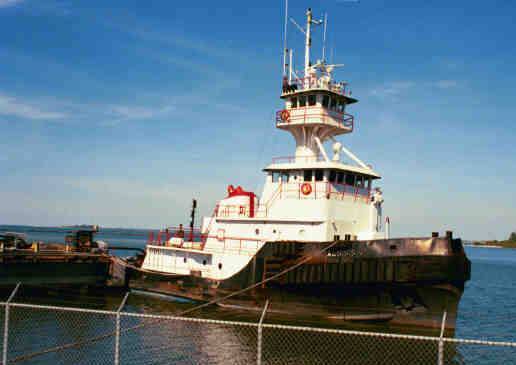

TUG DIMENSIONS/PARTICULARS |
||
| Feet | Meters | |
| Length | 133 | 40/5 |
| Breadth | 34.5 | 10.5 |
| Draft | 13.3 | 4 |
| Main Engines | 2 EMD 16-645 E7B @ 2,800 HP Each | |
| Flag | Foreign | |
| Year Built | 1968 | |
| Class | ABS Iron Cross Through 12/2000 |
|
| Speed | 9 Knots Loaded 12 Knots Light |
|
| Accommodations | 7 Rooms/13 Bunks Galley All Air Conditioned and Heated |
|
| Winch | Unit is a Markey Type TYS-36 hydraulic winch with a capacity of 2400' of 2-1/4" wire and rated at 120,000 lb at 30 fpm and 50,000 lb at 60 fpm | |
| Elevation of Upper Wheel House | ||
