SOLD - Tugboat

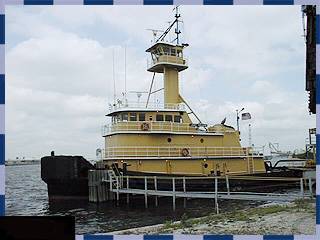

This US flagged, one of a kind, 3,000 HP ocean going tugboat is in operation after its recent scheduled dry-docking. It is a Shallow Notch ITB with plenty of power for the most difficult towing challenge with tremendous range. Note the upper wheelhouse with a 47 foot eye level. If you are in the market for this sizeUS Flagged tugboat, you must consider this one at the top of the list. It was Dry-docked during the second quarter of 1999. It is owned and rigidly maintained by a major US operator. The tug has COATED TANKS. Underwater spares include 2 tailshafts and one rudder. Contact us and we will help you purchase this fine tugboat. Prospective purchasers must be pre-qualified by this Broker.
VESSEL IDENTIFIER: GT10
Price: U.S. $ 3,300,000.00
DIMENSIONS |
||
| Feet | Meters | |
| Length | 115.5 | 35.0 |
| Breadth | 32 | 9.75 |
| Depth | 16 | 4.88 |
| Upper Pilot House | 47 Ft. Eye Level | 14.3M |
| Free Speed | 12 Knots (Light Tug) | |
| Speed Loaded | 6.4 Knots | |
| Range | 30 Days appx. | |
| PARTICULARS | |
| Flag | US |
| Year Built | 1977 |
| Where Built | Quality Equipment |
| Registry | USA |
| Class | ABS Full Ocean, Responsible Carrier Program +A1,+AMS |
| Certificates | |
| Gross Registered Tons | 191 |
| Net R. Tons | 144 |
MORE INFORMATION AND PICTURES BELOW
| Power | |

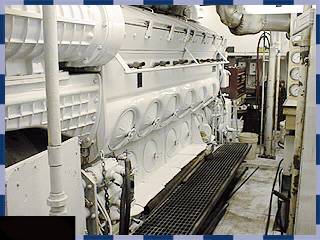

Main Engines |
Twin EMD 12-645-E6 3,000 @ 900 RPM HP |
| Reduction | Reintjes Wav Mod. 1850 4.95:1 Ratio |
| Propeller | Kort Nozzel 108"x107" Stainless Kaplan |
| Bollard Pull | |
Generators |
Detroit Mod 1063 DelcoMod. E6614 |
| Fuel Storage | 104,217 |
| Fuel Consumption | 3,400 Loaded |
| Deck Machinery | |
Towing Winch |
Intercon Double Drum |
| Other Winches | |
| Windlass | |
Navigation/Electronics |
||

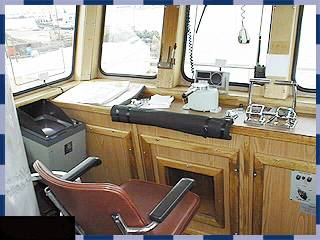

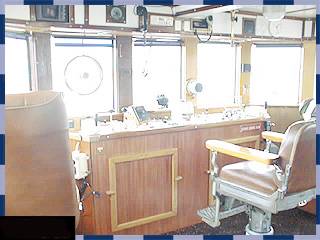

| Lower Wheelhouse | Upper Wheelhouse | |
Radar |
Furuno FR 2021 | Furuno FR 8050 |
| Autopilot | Sperry | |
| GPS | Trimble Navtrac XL | Trimble Navtrac SL |
| Echo Sounder | Furuno Video Color Sounder FCV 582 | |
| Radios | ICOM VHF, Shipmat Rs7100, | ICOM VHF M127, Icon VHF M100 |
| Other Electronics | Too many to list | Too many to list |
| Accommodations | |
Rooms |
5 Staterooms 3 Private 2 Shared |
| Hospital | |
| Dining | One |

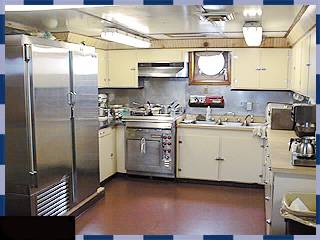

| Basic Galley Equipment | 4 Element Toastmaster Range Cospolich Reefer and Freezer |
