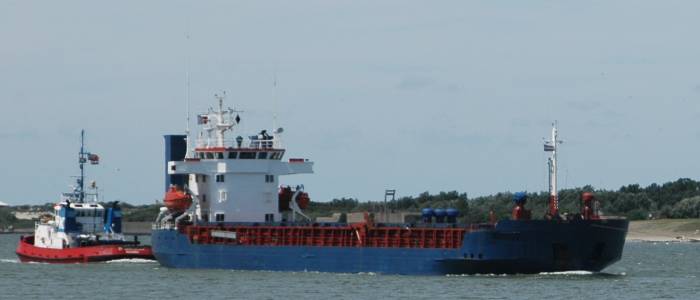

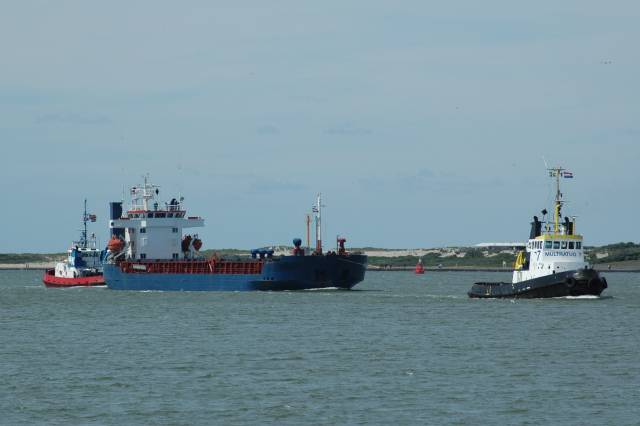

De-Listed - General Cargo Ship
This vessel has 2 box holds and is suitable for grab discharging. Main Engine completely re-built in France and completed January 2009.
VESSEL IDENTIFIER: GOR11
Price: 3,600,000.00 EUROS
DIMENSIONS |
||
| Feet | Meters | |
| Length | 350.3 | 106.8 |
| Breadth | 54.1 | 16.5 |
| Draft | 23.9 | 7.3 Summer |
| Air Draft | 90.86 Feet from Keel to Top plus 19.7 feet Antenna | 27.7 Meters from Keel to Top plus 6 meter antenna |
| Speed | 10 knots Laden | |
| Consumption | 8.0 Tons IFO30 | |
| PARTICULARS | |
| Flag | Dominica/ |
| Year Built Singapore/Rebuilt West Germany | 1979/1988 |
| Current Location | Trading Baltic |
| Class | RINA Ice Class 1A+SUT-UMS IACS Class |
| Survey | Intermediate Survey/DD Sept. 2006 |
| GRT/NRT | 5,184/3,046 |
| DWTCC | 7,600 |
| Grain/Bale | 372,215/366,743 |
| Cargo Gear | NONE |
| Equipment | |
| Main Engine | MAK 6M 32 Installed 1999 NEW - 2,880 KW |
| Propeller | Single |
| Bow Thruster | 268 Kw bow |
| Generator | 2 MVM D601-6 150 HP @ 350 Liters MGO at berth |
| Shaft Generator | Stamford MC 536B 138 KVA |
| Air-conditioning System | |
| Bunker Capacity | |
| CARGO HOLD CAPACITIES | |
| Hold Capacities |
#1 - Abt 126,779 CBF Grain / Abt 123,601 CBF Bale #2 - Abt 245,436 CBF Grain / Abt 243,142 CBF Bale Total Abt 372,215 CBF Grain / Abt 366,743 CBF Bale |
| Hatches | #1 - 24.4 M x 13.2 M #2 - 46.8 M x 13.2 M |
| Load Strength | Hatch Covers 1.5
Tons/Square Meter Tank Top 7.2 Tons/Square Meter |

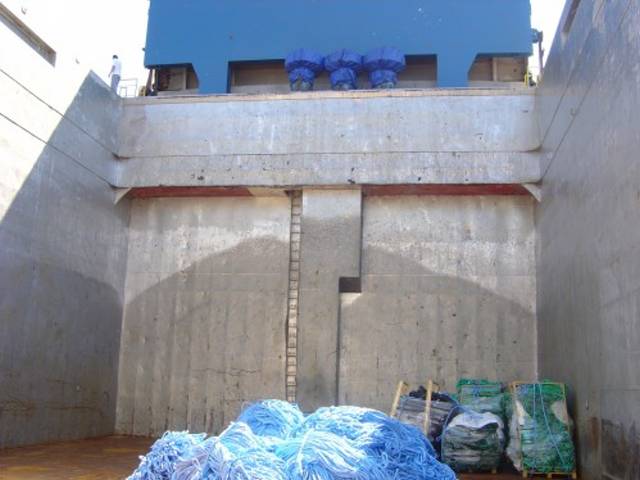

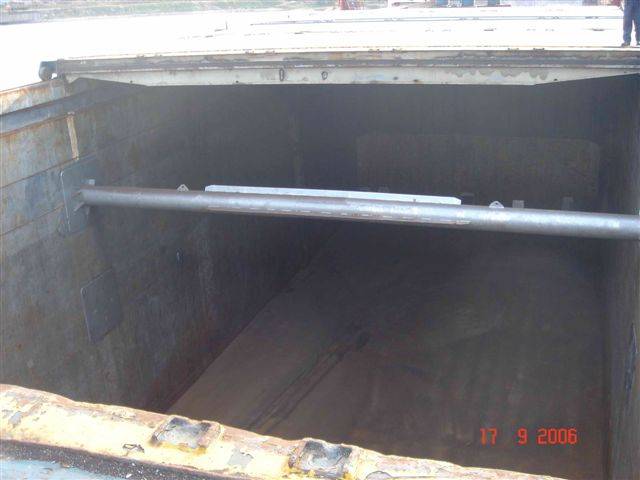

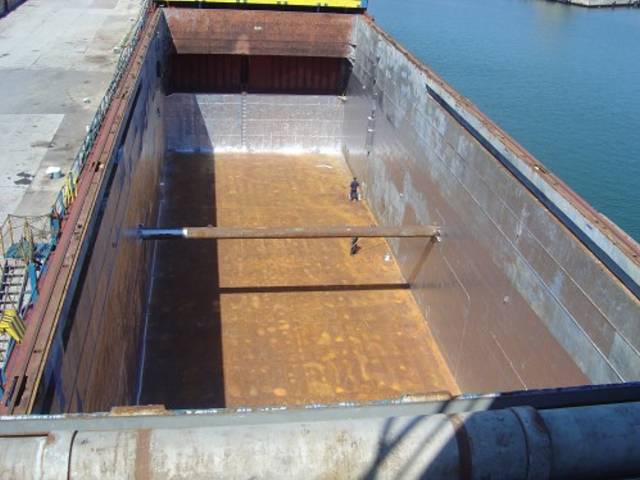

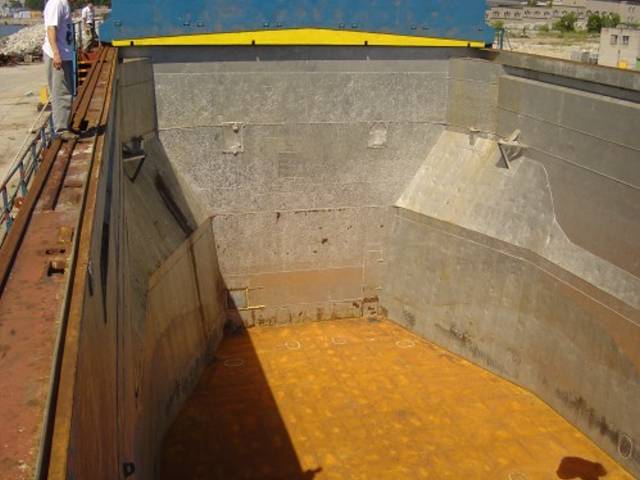

| Hold Description | 2 Double Skinned Box Shapes Holds narrowing from the center towards the forepeak |
| Approx. Hold Dimensions | #1 - 26.3 M x 13.2 M
Narrowing to forepeak to 7.58 m x 10.5 Meters High #2 - 49.0 M x 13.2 M x 10.5 Meters High |
