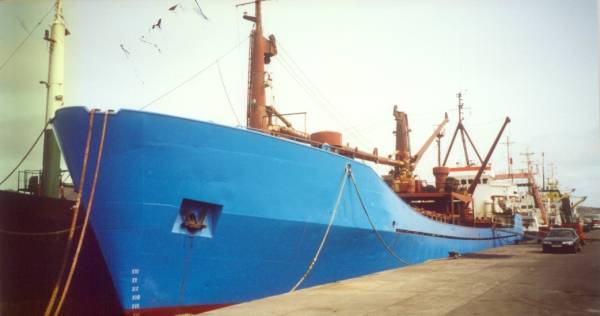

SOLD - Geared Tweendeck Vessel

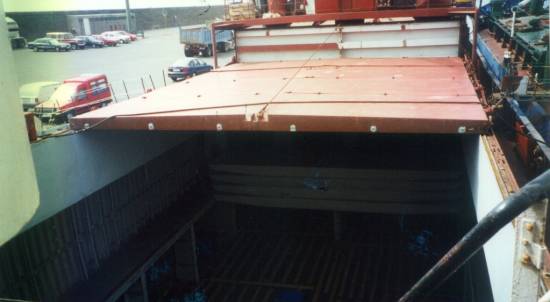

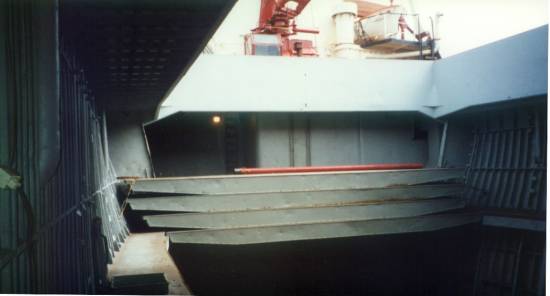

This well maintained geared vessels has a tweendeck and MacGreggor hatch covers. The vessel has 4 Cranes of SWL 5 tons each, 2.8 tons at 14 meters.
VESSEL IDENTIFIER: EC10
Price: U.S. $ 400,000.00
DIMENSIONS |
||
| Length | 250 | 76.31 |
| Breadth | 40 | 12.21 |
| Molded Depth | 22.3 | 6.8 |
| Molded Draft | 19.8 | 6.04 |
| Speed | 13 Knots | |
| Consumption | ||
| PARTICULARS | |
| Flag | Panama |
| Year Built | 1975, Germany |
| Current Location | Canary Islands |
| Last Dry-docked | |
| Class | Ice Class A1 |
| Certificates | |
| GRT | 1978 |
| DWT ST SW | 2,650 |
| Equipment | |
| Main Engine | Deutz AG Kon 6 Cylinder 1800 HP |
| Generator | 2 - Deutz 115KVA 400/246 V 50Hz. 1 - Deutz 85 KVA |
| Bow Thruster | |
| Fuel Capacity | 195 Cubic Meters |
|
Cargo Area |
|
| Holds | 48,733 Grain - 40,400 Bale CBF |

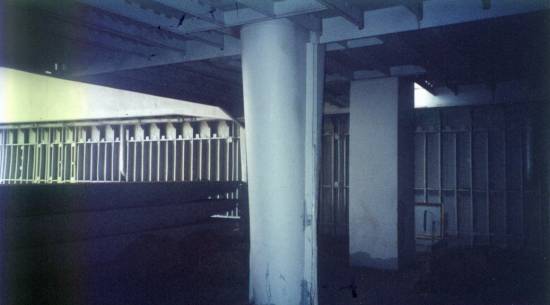

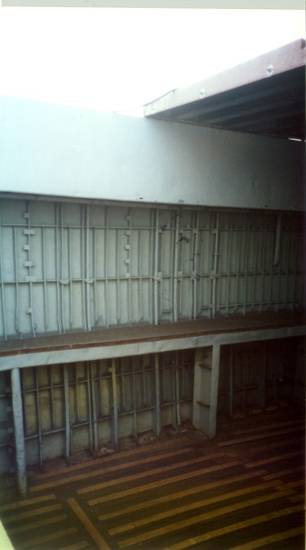

| Tween Deck | 84,541 Grain - 80,342 Bale CBF |
| Total | 133,274 Grain - 120,742 Bale CBF |

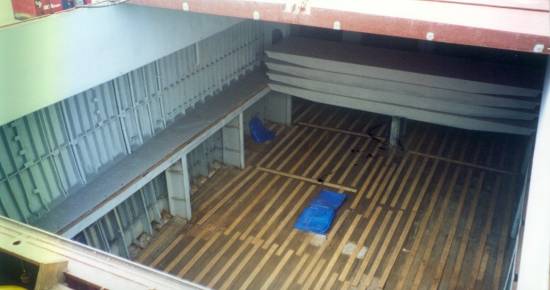

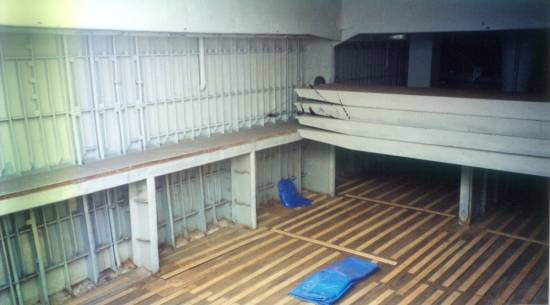

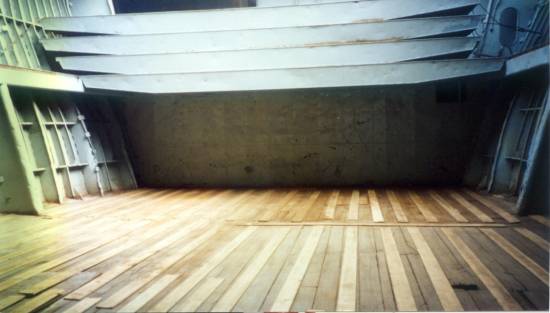

| Lower Hold | Max. Length 47 Meters Breath 3 bow 12 Middle 8 M. Aft Volume 1,380 Cubic Meters |

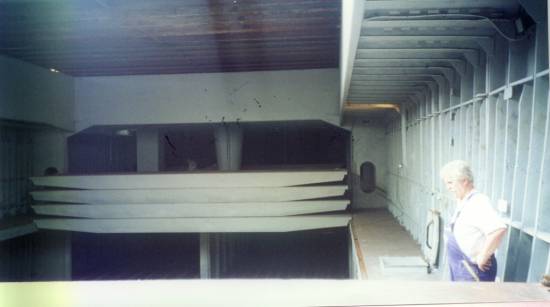

| Upper Tween | Max Length 50 Meters Breath 5 Bow, 12.2 Middle 10 Aft Volume 2,390 Cubic Meters |
| Hatch Size | 17,070 x 9,400 |
| Cranes | 5 Tons SWL, 2.8 Mt at 14 Meters |
