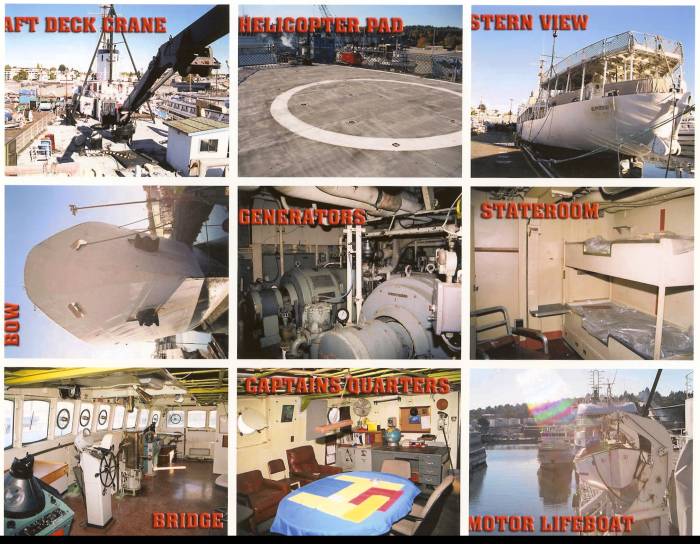

This former US Coast Guard vessel has a 28 foot engine powered whale boat in launching davit on the starboard side. She has a complete fire fighting system. Her deck gear includes a 10,000 pound Western Gear pedestal mounted knuckle boom crane, a 4,000 LB capacity davit frame. 2- Western gear deep sea anchor and coring, two drum level winding winch with a pull of 30,000 LBS @ 133 fpm to 6,800 lbs powered by a 140 HP electric motor. She presently has a helicopter landing pad. Her accommodations include space for 127 Officer and crew, a captain and 4 private officer staterooms with private head. Forty-two 4 person stateroom, all furnished. Many other offices and shops. This vessel has all kinds of possibilities for conversion.
VESSEL IDENTIFIER: CMS10
Price: U.S. $ 995,000.00
PARTICULARS |
||
| Feet | Meters | |
| Length | 292.2 | 89 |
| Breadth | 46 | 14 |
| Depth | 27.3 | 8.3 |
| Draft | 16 | 4.9 |
| Speed | 16 Knots - Max. | |
| Fuel Consumption | ||
| PARTICULARS | |
| Flag | US |
| Year Built | 1960- San Diego |
| Last Dry-docked | |
| Location | Seattle, Washington |
| Class | No |
|
GRT |
2,653 |
| Light ship | 2,070 Long Tons |
| Power | |
|
Main Engines |

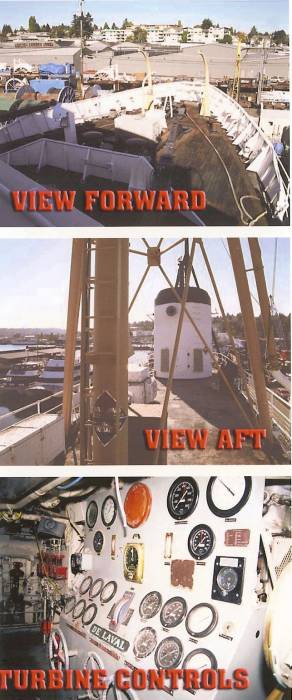

DeLaval 3,300 HP @135 RPM geared Steam Turbine powered by two Combustion Engineering 17,500 lb/hr. Boilers. Three feed water tanks. Controlled by DeLaval Cross Compound turbine control system. |
| Steering | Sperry electric/hydraulic steering controls |
| Propeller | 13' Diameter x 13.33' Pitch, four
blade, right hand bronze propeller Murry & Tregurtha Harbormaster 200 HP aft thruster |
| Generator | 2 - GE ATI 450 KW AC Service Generators, 450 volt Worthington U2S2 Steam Turbinie Delco 100 Kw Ac Emergency |
| Compressor | 2 - Ingersol Rand Model Intelisys rotary compressors powered by 25 HP electric motor |
| Water Capacity | |
| Fuel Capacity | 225,964 US Gallons giving appx. 36 days at 15 Knots or 13,117 Miles @ 15 knots |
