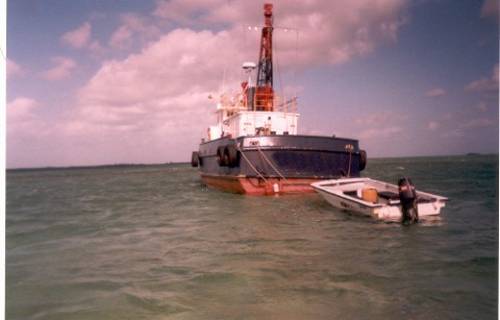

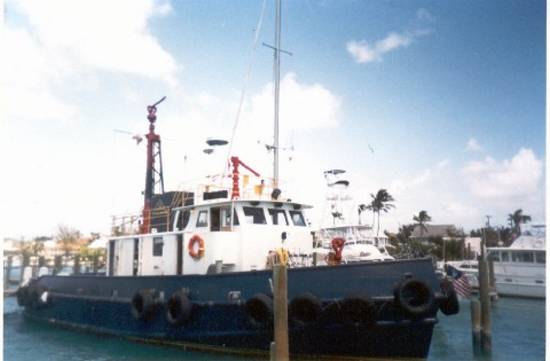

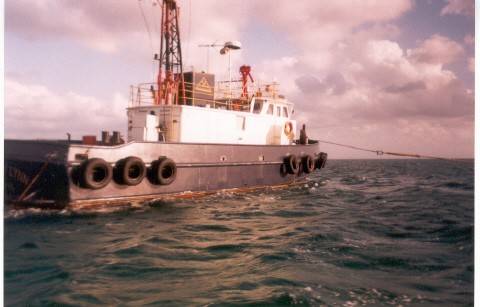

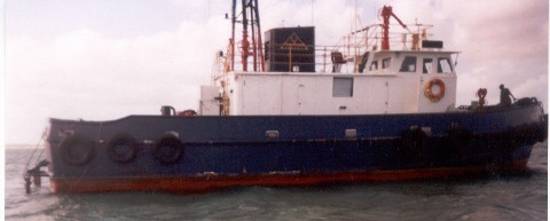

Tug
This tug was originally built as a fire boat and maintained by the city government. She has had most of her bulwarks replaced with 1/4 inch steel plate. Deck fittings include a 10 inch diameter cast steel mooring bit in the bow and also two to inch diameter cast steel bits forward of the house port and starboard. There is a 12 inch "H" bitt on the aft deck.
VESSEL IDENTIFIER: CH10
Price: U.S. 275,000.00
DIMENSIONS |
||
| Feet | Meters | |
| Length | 68.5 | 20.88 |
| Breadth | 20.6 | 6.28 |
| Draft | 6 | 1.83 |
| Speed | 12 Knots | |
| Range | ||
| PARTICULARS | |
| Flag | US |
| Year Built | 1962 |
| Registry | US |
| Class | |
| GRT/NET | 92/63 |
MORE INFORMATION AND PICTURES BELOW
| Power | |
Main Engines |
2 Cummins VT 12 Turbo charged 1200 HP total. |
| Reduction Gear | Twin Disc SP314 PT |
| Auxiliary | 2 - 250 HP Cummins Model J for manuevering vessel |
| Propeller | 4 - 33 Inch 4 Blade Stainless |
| Shafts | 4 - 4 Inch Stainless |
| Fuel Storage | 2100 Gallons |
| Generators | |
| Fresh Water | 200 Gallons |
| Electronics | |
Radar |
40 Mile Furuno |
| Compass | Kelvin White |
| Radios | Pearce VHF |
| Other | Furuno GPS |
| Other | |
