This RoRo ship is a sideloader paper carrier. She has two sideloaders on the starboard side.  One hatch is 7.6 meters wide extending from 1.2 meters above main deck to 2.3 Meters above the weather deck level as side door, continuing 3.0 meters from side as deck hatch.  Assembly opens "out/up/in" leaving a clear unobstructed opening in side and weather deck.
The ships has 581 lane meters on the Main Deck, 320 lane meters in the lower hold and 419 lane meters in the weather deck.  The stern port ramp has a 60 ton capacity and 10.6 meter with x 6.2 meter clearance.

VESSEL IDENTIFIER: CAM10

Click here to see Photo Page 1 Click here to see Photo page 2

Price: U.S. $  2,500,000.00 FIRST REASONABLE OFFER, OWNER WANTS TO SELL

DIMENSIONS

Length  436 133
Breadth 67.5 20.6
Draft  22.5 6.86
Speed 12.5 Knots
Consumption 22 T IFO180/380





PARTICULARS
Flag Barbados
Year Built 1982
Current Location Greece
Next Dry-docked 10/03
Class Lloyds Class
SS 01/04
Certificates Ice Class 1 A Super
GRT/NRT 10,085/3,026
DWAT 7,340 MT
DWT







Equipment
Main Engine SWD12 TM310  7,800 HP/5,737KW
Generator 2  MWM TBD 603V V12 Each.  Each 640KW plus 1 shaft generator
Bow Thruster YES 600 KW
Fuel Capacity 651 cbm Heavy Fuel
159 cbm MGO
Ballast Water 3,043 cbm
Fresh Water 113 cbm






Cargo Capacity
Newsprint Capacity 6,200-6,500 Tons
Lower Hold 1,065 sqm x 4.3 meters

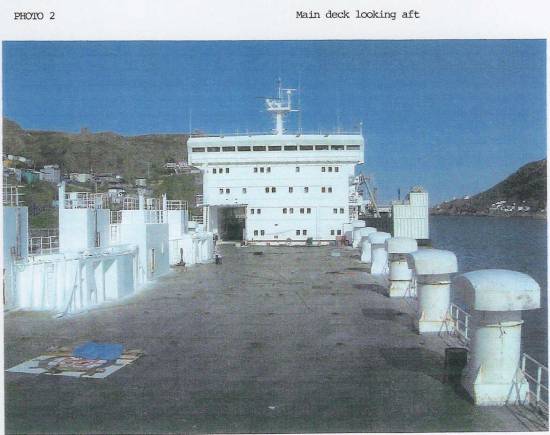

Main Deck 1,896 sqm x 6.2 meters
Weather deck 1,081 sqm
Lower Hold 4,475 cbm/157,960 cuft Grain
Main Deck 11,553 cbm /407,820 cuft
Loading Gear 60 ton Trepellift, 13.0x3.5 m from main deck to lower hold.  30 ton Llift Navire from Weather deck to Main deck
