Geared Cargo Vessel

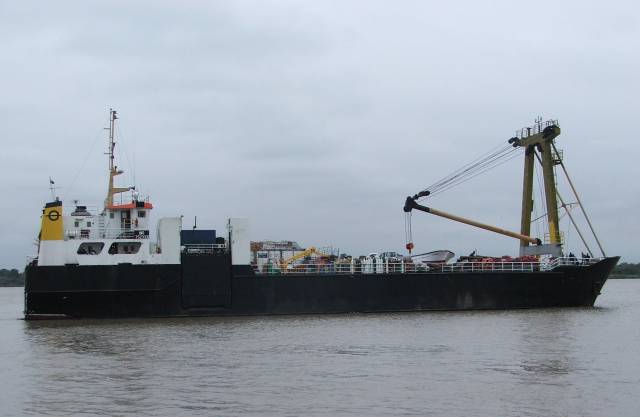

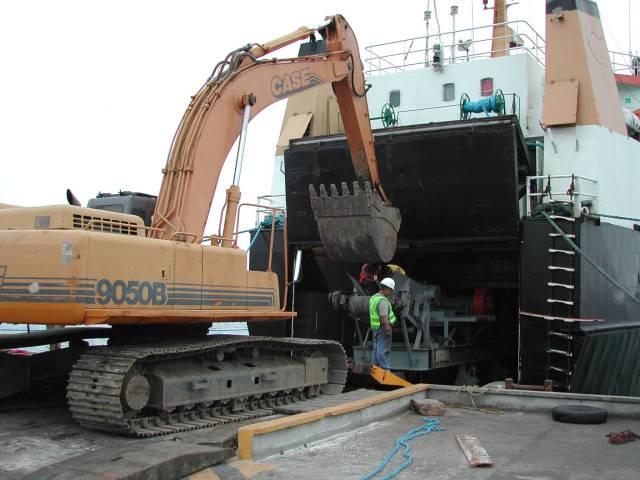

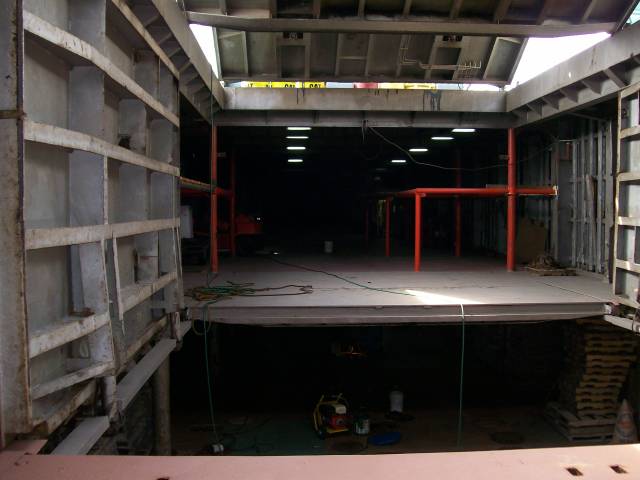

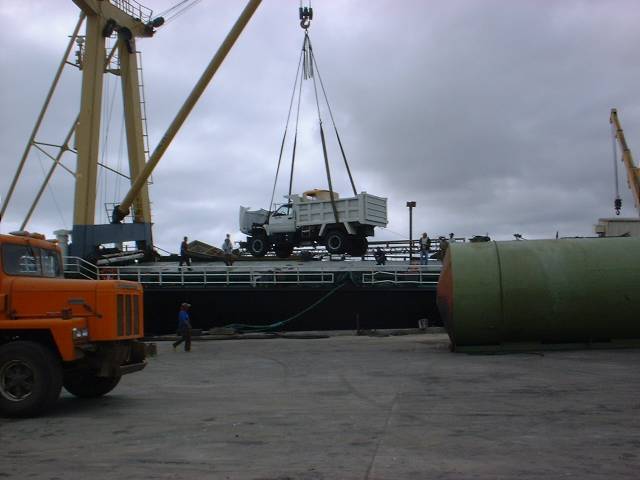

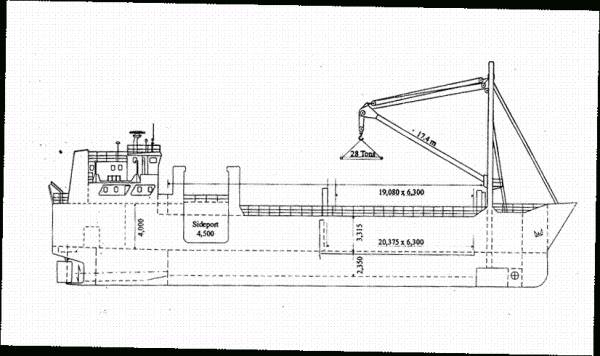

This vessel has a 15 SWL capacity Crane and was built in 1977. She has one hold with two hydraulic McGregor hatch covers, the hatch covers open on the front part of the deck and is accessible by the crane. She also has a tweendeck with hydraulically operated deck openings as well. The height of the mast is 55 feet or 16.76 meters. Having inspected her, she appears in very good condition and is actively trading. She has a side loading door with elevator on the Starboard side as well as a stern door.
VESSEL IDENTIFIER: ALP10
Price: U.S. $ 1,300,000.00
DIMENSIONS |
||
| Feet | Meters | |
| Length | 207.6 | 63.3 |
| Breadth | 36 | 11 |
| Draft | 12' 3" | 3.77 |
| Speed | 10 Knots | |
| Consumption | 50 Gallons/Hour | |
| PARTICULARS | |
| Flag | Bahamas |
| Year Built | 1977 Norway |
| Current Location | Ecuador |

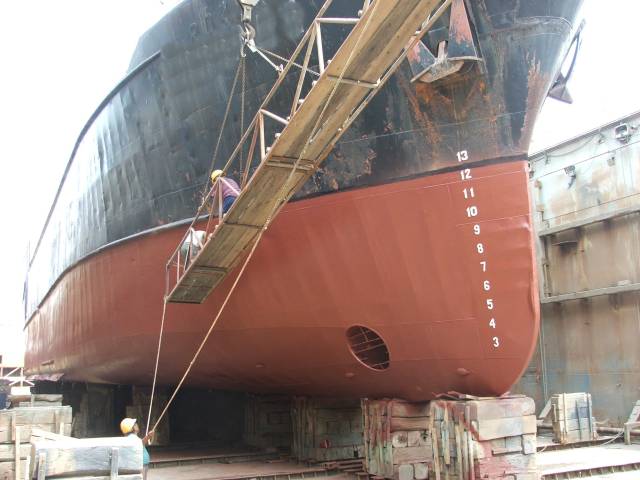

| Last Dry-docked | Oct 2004 |
| Annual Survey | |
| Class | DNV - Det Norske Veritas |
| Load Coefficient | 0.72 |
| GRT/NRT | 476/394 |
| DWT | 1,087 MT |
| Bale Capacity | 8,500 Cubic Feet |
| Equipment | |
| Main Engine |
Caterpillar D399 - 1,125 HP Replaced March 2004 |
| Generator | 2 - Caterpillar 3304 |
| Propulsion | Single Screw Variable Pitch Propeller |
| Bow Thruster | 80 KW |
| Fuel Capacity | 15,600 Gallons |
| Fuel Consumption | 50 GPH Total with generators MDO |
|

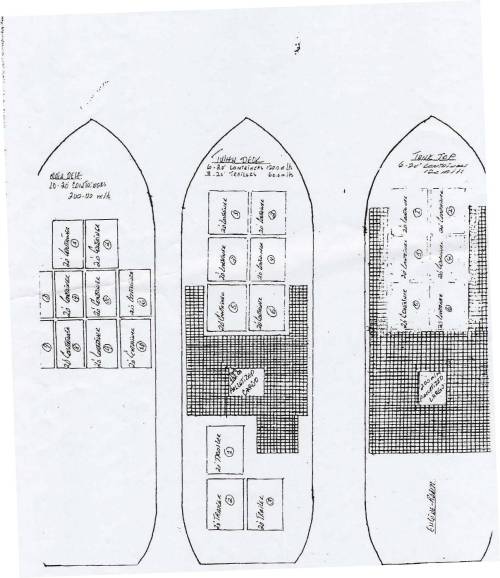

Container Capacity |
||
| 20 Foot Containers | 40 Foot Containers | |
| Weather deck | 20x20' | 7x40' plus 4x20' |
| Tweendeck | 6x20' | 2x40' plus 2x20' |
| Tank Top | 6x20' | 2x40' plus 2x20' |
| TOTAL | 32x20' | 11x40' plus 8x20' |
| Hatch Opening | 22 feet wide X 70 Feet Long | |
|
Deck Area |
||
| Square Feet | Square Meters | |
| Weather deck | 4,359 | 405 |
| Tweendeck | 5,543 | 515 |
| Tank Top | 4,664 | 375 |
| TOTAL | 13,939 | 1,295 |
