De-Listedd - General Cargo Ship
THIS VESSEL IS GMDSS A1/A2/A3 FITTED. HER HOLDS ARE CO2 FITTED
VESSEL IDENTIFIER: AAK10
Price: U.S. $ 1,500,000.00
DIMENSIONS |
||
| Feet | Meters | |
| Length | 373.9 | 114 |
| Breadth | 45.26 | 13.8 |
| Depth | 18 | 5.5 |
| Draft | 12.5 | 3.8 |
| Speed | ||
| Consumption | ||
| PARTICULARS | |
| Flag | Russian |
| Year Built | 1974 |
| Current Location | Mediterranean Sea |
| Last Dry-docked | January 2006 |
| Class | Russian Maritime Register |
| Next SS | January 2008 |
| GRT/NRT | 2446 |
| DWTCC | 3100 |
| Lightweight | |
| Grain/Bale | 154,000 cubic Feet Box |
| Cargo Hold | |
| Equipment | |
| Main Engine | SKL |
| Propeller | one |
| Bow Thruster | No |
| Generator | Russky Diesel |
| Power | |
| Steering | |
| Anchors | |
| Range | 4000 Miles |
| Air-conditioning System | |
| Bunker Capacity | 85 MT |

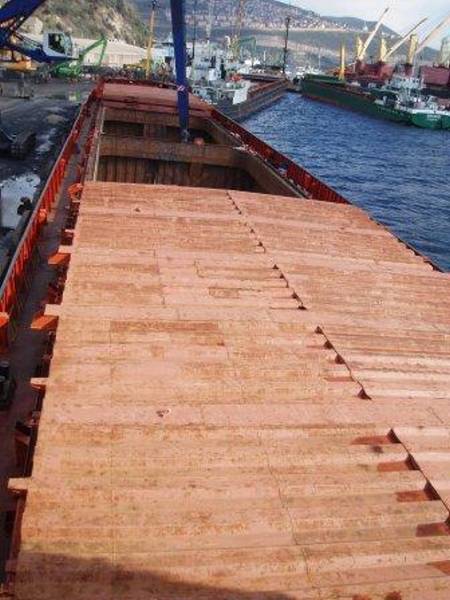

- TYPE OF HATCH COVERS / WAY OF OPENING / CLOSING(BY EACH HOLD): MCGREGOR,
FORE/AFT EACH
- HOW MANY HOLDS MAY BE OPEN SIMULTANEOUSLY: 4
- NUMBERS HOLDS / HATCHES: 4 / 4
- HATCH DIMENTIONS:
L(M) B(M)
HATCH NO.1 - 17.50 9.35
HATCH NO.2,3 - 19.70 9.35
HATCH NO.4 - 18.00 9.35
GRAIN FITTED: YES
- GRAIN CAPACITY (CUB.M ): 4297.00 CUB.M
- HATCH COVERS AREA IN M2: 673.66 M2
HATCH NO.1 - 164.56 M2
HATCH NO.2 - 169.70 M2
HATCH NO.3 - 169.70 M2
HATCH NO.4 - 169.70 M2
- DISTANCE FROM SHIP'S RAIL TO INSIDE HATCH COAMING(FORE/AFT): HOLD
NO.1,2,3,4 - 1.2M / 1.2M
- CLEAR DECK DISTANCE BETWEEN SHIP'S RAIL AND HATCH COAMING(FORE/AFT):
HOLD NO.1,2,3,4 - 0.8M / 0.8M
- DISTANCE FROM KEEL TO TOP SHIP'S ANTENNAS: 24.0 M
- IN CASE VESSELS ANTENNAS ARE PILING - DISTANCE FROM KEEL TO TOP VESSEL'S
DECKHOUSE: 15.0 M
- DISTANCE FROM WATERLINE TO OPEN TOP OF HATCH COAMING:
- IN FULL LOADED CONDITION - FORE HOLD 1 - 1.81M / AFT HOLD 4 -1.58M
- IN FULL BALLAST CONDITION - FORE HOLD 1 - 3.31M/ AFT HOLD 4 -2.41M
- DISTANCE FROM BOW TO FORE PART HOLD NO.1: 14.8 M
- DISTANCE BETWEEN VESSEL'S HOLDS: 1.3 M
- DISTANCE FROM BOW TO AFT PART OF HOLD NO.4: 87.0 M
- DISTANCE FM MAIN DECK TO OPEN TOP HATCH COAMING: 0.66 M
- STRENGHTS (MT/M2):
HATCH COVERS: 1.75
HOLD'S TANKTOP FOR HOMOGENEOUS LOADING: 5.6 MAIN DECK: NIL
- IF ANY OBSTACLES IN HOLDS: NIL
- HOLDS CLEAR SPACE(M2): TOTAL - 792.0
HOLD NO.1: 143.0
HOLD NO.2: 222.5
HOLD NO.3: 222.5
HOLD NO.4: 204.0
- IF ALL HOLDS LIKE BOX TYPE:
- HOLD'S DIMENTION(M):
WIDTH LENGTH HEIGHT
FORE / AFT
HOLD NO.1: 5.37 / 11.00 17.50 5.35
HOLD NO.2,3:
11.00 19.70 5.35
HOLD NO.4:
11.00 18.00 5.35
- STEEL FLOOR: YES
